Mesh bag loom making machine mesh bag 4 shuttle circular loom

  • >=1 Sets
    $6,800.00
Power(W):
2kw
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Machine Type:
Bag Forming Machine
Bag Type:
Cement Bag
Condition:
New
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin:
China
Brand Name:
Yanfeng
Model Number:
YF-XT-750/4
Voltage:
380V
Weight:
1800kg
Certification:
CE
Computerized:
No
Material:
Plastic
Dimension(L*W*H):
8300*2200*2730mm
Applicable Industries:
Manufacturing Plant
New:
Econimic
Low noise:
Low energy
Layflat Width:
350-750mm
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed in nude or wooden case
Port
Wenzhou
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 15 To be negotiated
Video Description

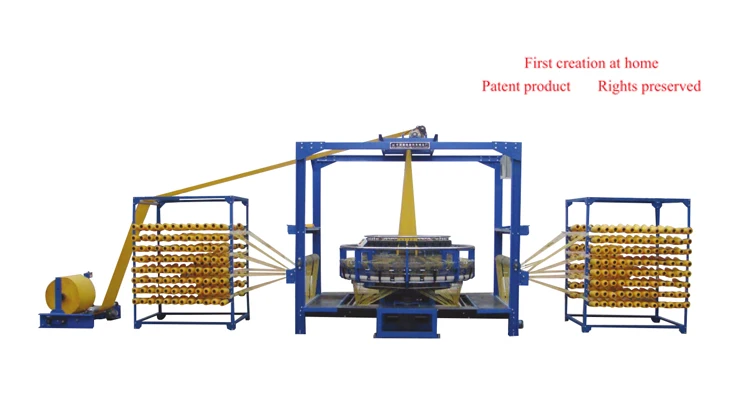

Mesh bag loom making machine mesh bag 4 shuttle circular loom

Banner


Product Description



More Information for Dependable Performance PP Woven Bag Making Machine:

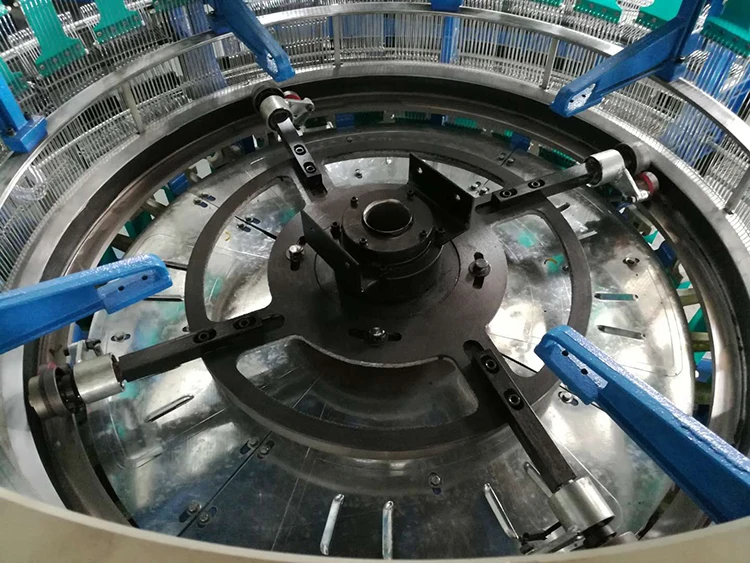

a. Small cam type and convex table as well as swing-beam rolling wheel transmission is adopted, making it easy and stable to run.
b. Slide block and rod are eliminated while the wearing parts are decreased. Rolling transmission is adopted in entire structure, which doesn't need lubricant.
c. Frequency speed regulation which is convenient and stable is adopted.

d. It is configured with automatically stop detecting unit when meeting the situation of warp/weft breaking, weft ending. The stoppage unit is sensitive and reliable.
e. It's an environmental product whose noise is not more than 80dB(A).
f. Low strength plastic yarn which is made from 100% regenerated plastic can be adopted to weave.
g. It is high-efficient and energy-efficient. The highest rotation speed of the main motor can reach 180r/min and the power is 1.5/2.2kw, which can save 10 thousand degree electricity compared with the traditional four shuttle circular loom whose power is 4kw.
h. It is a patent device. (Patent No.: ZL 200820166333.1)




Model No
YF-XT-750/4
Number of Shuttle4
Layflat Width (mm)350-750
Max. Number of Warp (pcs)640/768
Revolution of Main Motor (r/min)140-180
Production Capability (10*10) (m/min)1.4-1.8
Power of Main Motor(kw)1.5/2.2
Gross Power(kw)2/2.7
Weight (kg)1800
Installing Dimensions (L × W × H) (mm)8300 × 2200 × 2730
